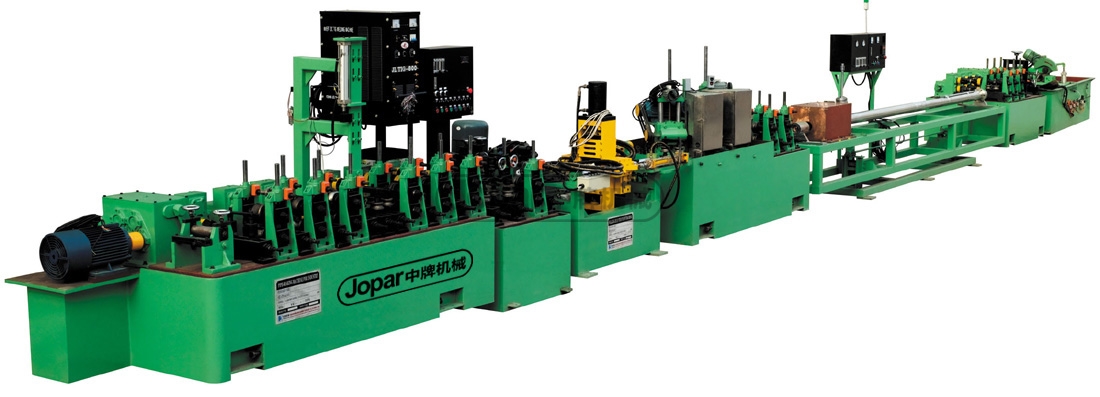

Precision Pipe Production Line

Precision pipe production line is mainly used in the production of stainless steel pipe. Because stainless steel pipe technology matures, has been replaced in many areas seamless (such as chemicals, pharmaceuticals, wineries, oil, food, automotive, paper, air conditioning and other industries and are widely used.)

automated production processes: The uncoiling, cleaning equipment, feed orientation, forming, welding, weld leveling within and outside the weld grinding, shaping, sizing, solution treatment, the final sizing, alignment, testing, spray code, length, cut off (coil), splicing and other continuous molding process. Fine structure, easy operation, manufacturing, first-class quality.

Consulting Buy Hotline: +86-757-8108 2366    8177 9166

Technical parameters

model horizontal axis diameter (mm) horizontal axis diameter (mm) vertical shaft diameter (mm) Pipe thickness (mm) Main motor power (dual) mechanical assembly size (length X width)
ZPJX-40 40 25 Ф8-Ф51 0.5-2.0 Before 7.5 KW
After the 5.5KW
29m X 1.5m
ZPJX-50 50 30 Ф25-Ф63 0.5-3.0 Before 11KW
After the 7.5KW
32m X 1.5m
ZPJX-60 60 40 Ф50-Ф114 0.6-3.5 Before 15 KW
After the 15KW
35m X 1.8m
ZPJX-80 80 50 Ф89-Ф168 1.0-4.5 Before 18.5 KW
After the 18.5 KW
40m X 2.5m
ZPJX-100 100 60 Ф114-Ф219 1.0-5.0 Before 22 KW
After the 22KW
43m X 3.0m
Precision welded stainless steel mechanical machine main unit: uncoiler, forming welding machine, grinding machine, two sizing unit, frame straightening, cutting machine, finished frame

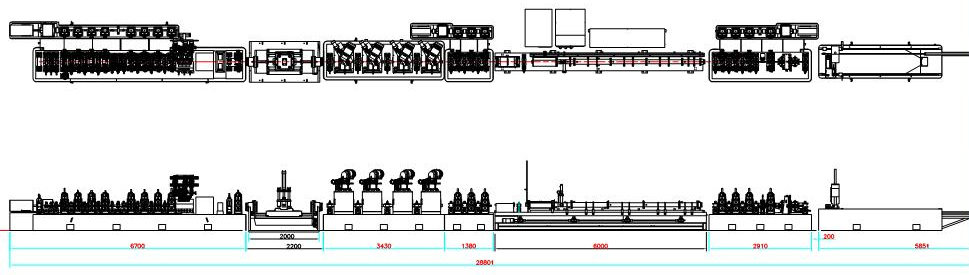

CAD

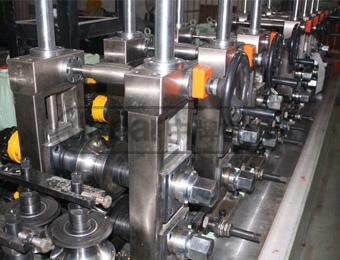

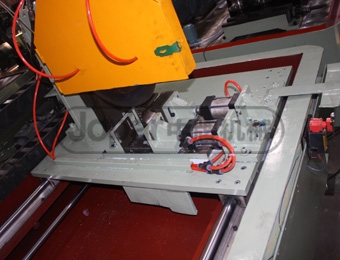

Detail Images

  • 1
  • 2
