Jopar Machinery, Let China pipe machine to the world!

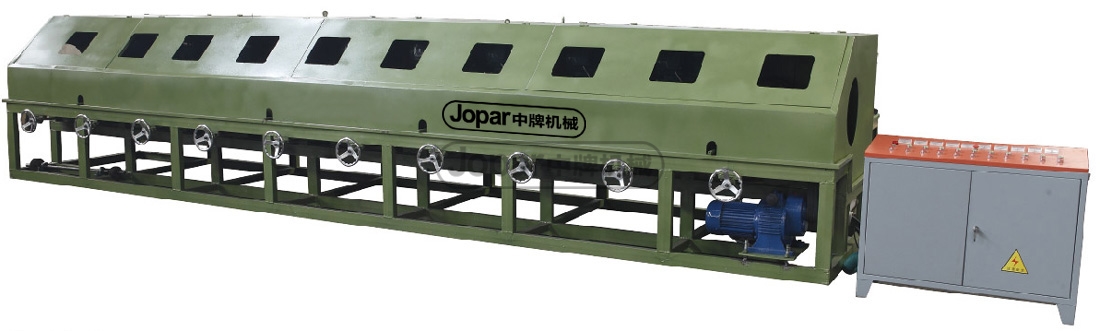

Stainless steel tube polishing machine is mainly used for stainless steel pipe with brushed surface finish. Continuous polishing process: After feeding, polishing (thousands impeller, flax wheel, cloth wheel, wind cloth wheel) plus polishing wax, discharge and other processes from production. Because stainless steel polishing machine polishing technology is mature, widely used in the decoration industry. (First: save time / process is simple, the second is: good quality / high brightness, three are: less pollution) easy operation, high quality and reasonable price, in line with the quality requirements of the domestic and foreign markets, to make high-quality, high-brightness the tube.

Consulting Buy Hotline: +86-757-8108 2366    8177 9166

Technical parameters

Model              grinding motor power (kw)              grinding shaft Shaft diameter (mm)              throw the scope              polishing speed (m / min)              Host Dimensions (mm) (A x B)
8 Grinding small round 4kw X 8 ∮36 ∮8-∮51 0-20 5300X1250
10 Grinding in the round 4kw X 10 ∮36 ∮16-∮76 0-20 7000X1300
10 Grinding great circle 5.5kw X 10 ∮36 ∮38-∮114 0-18 7200X1550
10 Round grinding increase 7.5kw X 10 ∮36 ∮76-∮219 0-15 7300X1600
Random main components: feeding rack, finished frame.

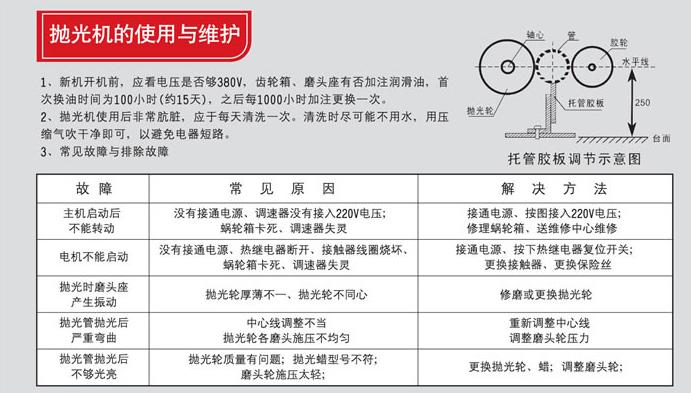

Use and maintenance

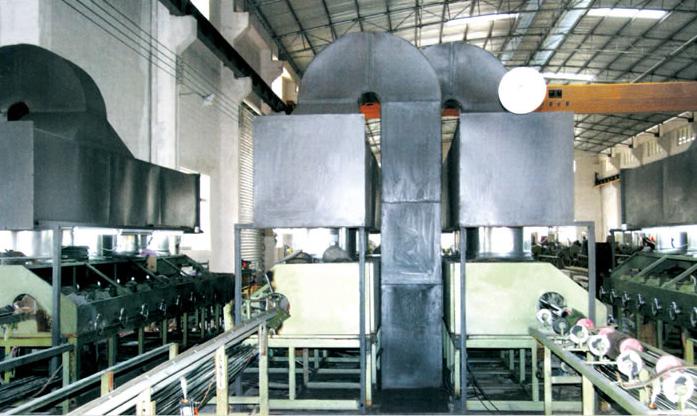

Ventilation comp image
