Jopar Machinery, Let China pipe machine to the world!

Jopar Universal pipe production line

Universal pipe production line is mainly used for decoration, products, appliances stainless steel and carbon steel pipe (tube, square tube, shaped tube) production. Automated production processes: The uncoiling, fight trademark, forming, welding, grinding, sizing, alignment, length, cut, splice and other continuous molding process. Fine structure, easy operation, first-class products, Jopar manufacturing.

Consulting Buy Hotline: +86-757-8108 2366    8177 9166

Technical parameters

model horizontal axis diameter vertical shaft diameter pipe diameter tube thickness Main motor power Machine size (length X width)
ZP-30 30 25 Ф6-Ф25 0.2-0.8 4KW 19,5m X 1.0m
ZP -小40 40 25 Ф6-Ф32 0.2-1.0 5.5KW 20m X 1.0m
ZP -40 40 25 Ф9-Ф51 0.2-1.5 7.5KW 21.5m X 1.1m
ZP -大40 40 25 Ф12-Ф64 0.3-2.0 11KW 21.5m X 1.1m
ZP -50 50 30 Ф25-Ф76 0.3-2.0 11KW 24m X 1.2m
ZP -60 60 40 Ф38-Ф114 0.4-2.5 15KW 26m X 1.4m
ZP -80 80 50 Ф76-Ф168 1.0-3.5 18.5KW 32m X 2.3m
ZP -100 100 60 Ф114-Ф219 1.0-4.0 22KW 36m X 2.5m
Electric tube plane 30 20 Ф5-Ф16 0.2-1.0 4KW 17m X 0.9m
Chimney pipe machine 50 30 Ф60-Ф100 0.3-1.0 11KW 25m X 1.2m
Machinery main components: open-book machine, welding machine molding, grinding machines, sizing machine, straight frame, cutting machine, finished frame

CAD

CAD

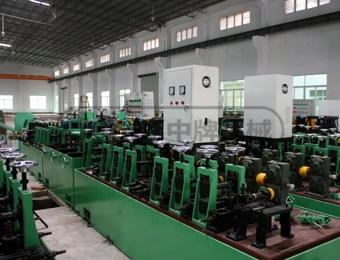

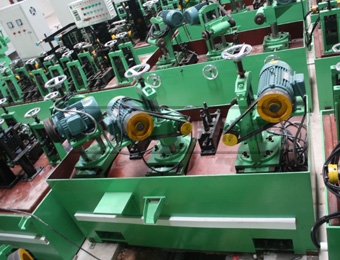

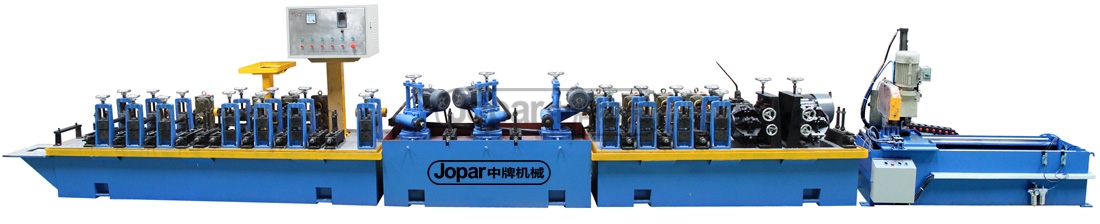

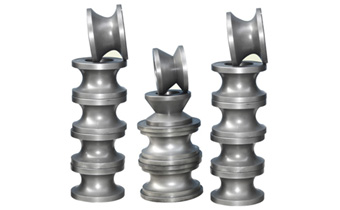

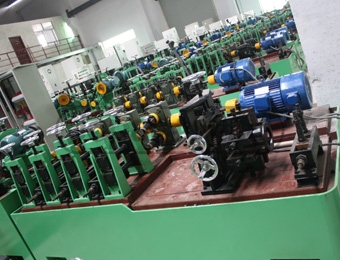

Detail Images

  • 1
  • 2
  • 3
