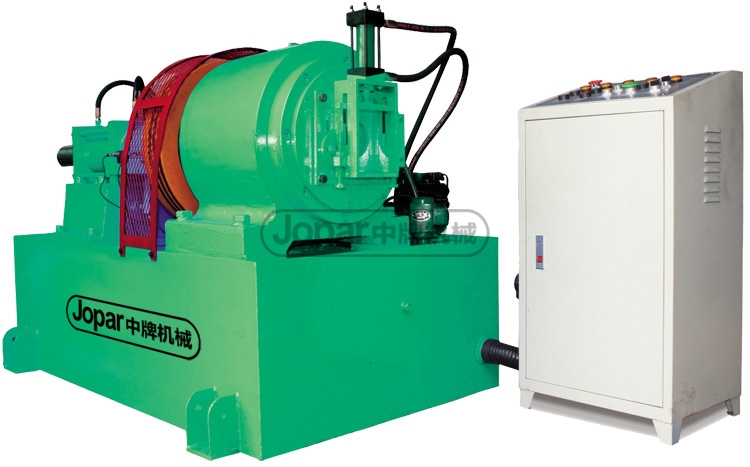

Stainless steel embossing machine

Description
Parameters
Projects
Related Products

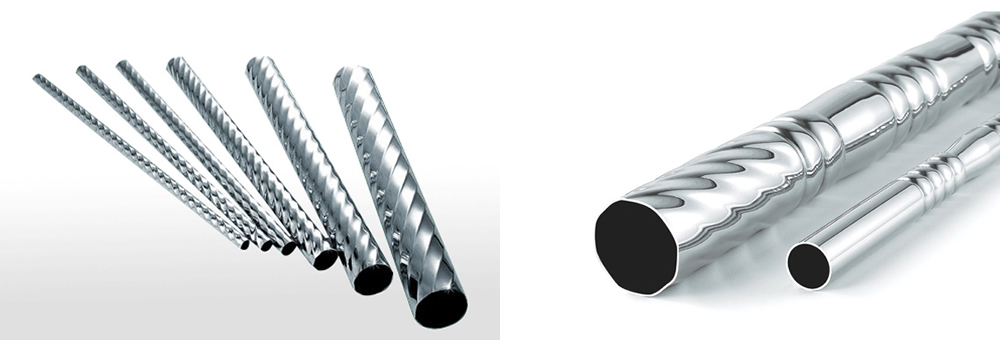

Embossing machine, also known as stainless steel flower tube forming machine, using advanced foreign technology. Stainless steel, iron, aluminum tubes and other various machining flat flowers, round flowers, craft flowers, bulk flowers, eggs, flowers and other flowers. Machinable diameter range (& phi; 12- & phi; 114 mm) thickness (0.3 to 2 mm). The stainless steel equipment embossing machine has good processing quality, low cost, high efficiency, is ideal for processing a variety of pipe flower tube!

Consulting Buy Hotline: +86-757-8108 2366 8177 9166

Technical parameters

Data	25Type（BG-06）	50Type（BG-07）	76Type（BG-08）	114Type（BG-09
Die size（W×L×H）	35×300×55	50×300×75	70×400×60	90×650×70
Processing range （㎜）	∮12—∮25	∮25—∮51	∮51—∮76	∮38—∮114
The wall thickness（㎜）	0.2—0.5	0.2—1.2	0.4—1.5	0.7—1.5
Forming length （㎜）	290	290	360	600
Molding time（S/Times）	3—12	3—20	8—30	10—40
Reduce the wedge line program（Ma）	180	200	250	450
Mold opening and closing volume（Max）	28	30	40	50
The main motor（KW）	3	4	7.5	11
Spindle speed (RPM)	300	200	200	200
The spindle center height	800	800	800	900
Gross weight of equipment（㎏）	≈1500	≈2000	≈3000	≈5000
